Digital Multimeter Tester TRMS 20000 Counts with Higher Resolution Auto-Ranging Voltmeter; Accurately Measures Voltage Current Resistance Diodes Continuity Duty-Cycle Capacitance Temperature
Digital Multimeter Tester TRMS 20000 Counts with Higher Resolution Auto-Ranging Voltmeter; Accurately Measures Voltage Current Resistance Diodes Continuity Duty-Cycle Capacitance Temperature
Regular price
$68.99 USD
Regular price
$0.00 USD
Sale price
$68.99 USD
Unit price
/
per
Couldn't load pickup availability
No reviews
Share
SIZE & MEASUREMENT
- Dimension Package - 15 x 10 x 1 inches
- Product Weight - 3.0 oz
- Package Weight - 14.6 oz
- Dimension Package - 15 x 10 x 1 inches
- Product Weight - 3.0 oz
- Package Weight - 14.6 oz
PRODUCT DESCRIPTION
- Higher Resolution & Accuracy - The higher 20000 counts provide better resolution for more accurate measurements with a DC voltage accuracy up to ± (0.08% + 5).
- Multifunctional - The DM2000 Multimeter accurately measures AC/DC Voltage, AC/DC Current, and Resistance. The voltage tester also supports Capacitance, Frequency, Duty Cycle, Diode, Continuity, Temperature, and NCV tests. With this tool, you can identify the root cause of electrical issues and make informed decisions.
- User-Friendly & Intuitive - Includes convenient features like a Low Battery Indicator, Data Hold, Max/Min data, Auto Shutoff, Backlight, and Flashlight. It is easy to use and intuitive to read in dim areas.
- Enhanced Safety - Safety standard IEC 61010-1, CAT IV 600V, CAT III 1000V, FCC. Its dual ceramic fuses are anti-burn and protect from overloading. High Voltage and Current Alerts are active on all ranges while its intelligent LED Jack Indicator guides probes to the correct jacks, preventing damage from incorrect operation.

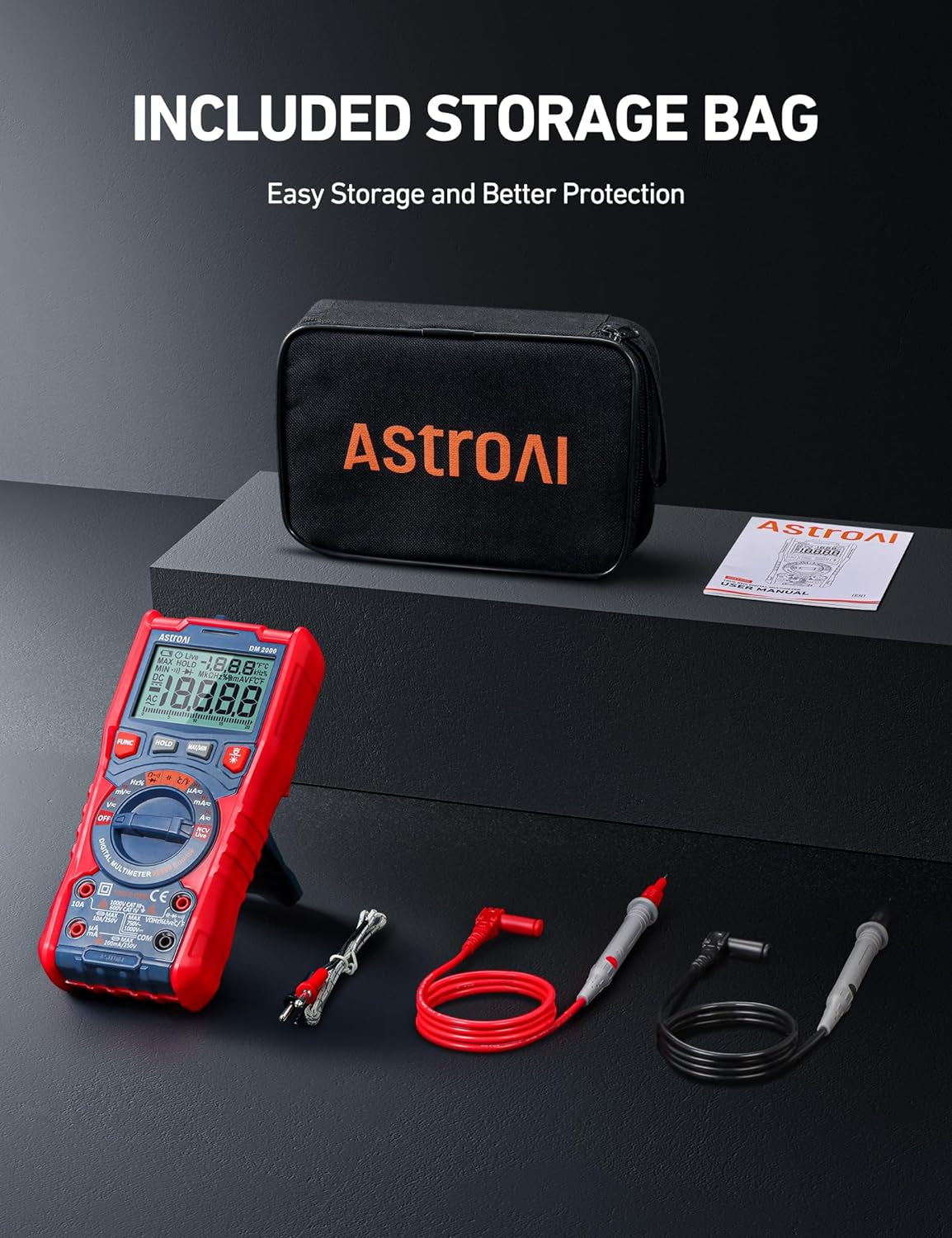

- Convenient Storage - The included storage case protects the multimeter from damage while maintaining portability. Whether you're at work or at home, it ensures the multimeter has the durability and mobility to go wherever the job takes it.
Product Description
Specifications
| Working Environment | CAT.IV 600 V; CAT.III 1000 V |
| Pollution Level | 2 |
| Work Temperature & Humidity | 0~40 °C(<80% RH, <10 °C Non-Con-densing) |
| Storage Temperature & Humidity | -10~60 °C(<70% RH, Battery removed) |
| Sampling Speed | 3 Times/Second |
| Digital Display | 4,½, 20000 |
| Range Selection | Auto |
| Power | 2x1.5 V AA batteries |
| DC Voltage | 200mV/2V/20V/200V/1000V ±(0.08%+5) |
| AC Voltage | 200mV/2V/20V/200V/750V ±(1.0%+25) |
| DC Current | 200μA/2000μA/20mA/200mA ±(0.5% +5), 10A ±(1.0% +15) |
| AC Current | 200μA/2000μA/20mA/200mA ±(1.0% +25), 10A ±(1.5% +25) |
| Resistance | 200Ω/2KΩ/20KΩ/200KΩ/2MΩ ±(1.0%+15)；20MΩ/100MΩ ±(3.0%+25) |
| Capacitance | 2nF/20nF/200nF/2μF/20μF/200μF/2mF/20mF ±(4.0%+50) |
| Temperature | -40°F-32°F（±6°F）；32°F-752°F（±1.0% or± 4 ° F)；752°F-1832°F（±2.0% ) |
| PACKAGE INCLUDES | User Manual X 1 ；Pair of Test Leads ；K-Type thermocouple X 1；Storage Bag X 1；AstroAI Digital Multimeter X 1 |
- Higher Resolution & Accuracy - The higher 20000 counts provide better resolution for more accurate measurements with a DC voltage accuracy up to ± (0.08% + 5).
- Multifunctional - The DM2000 Multimeter accurately measures AC/DC Voltage, AC/DC Current, and Resistance. The voltage tester also supports Capacitance, Frequency, Duty Cycle, Diode, Continuity, Temperature, and NCV tests. With this tool, you can identify the root cause of electrical issues and make informed decisions.
- User-Friendly & Intuitive - Includes convenient features like a Low Battery Indicator, Data Hold, Max/Min data, Auto Shutoff, Backlight, and Flashlight. It is easy to use and intuitive to read in dim areas.
- Enhanced Safety - Safety standard IEC 61010-1, CAT IV 600V, CAT III 1000V, FCC. Its dual ceramic fuses are anti-burn and protect from overloading. High Voltage and Current Alerts are active on all ranges while its intelligent LED Jack Indicator guides probes to the correct jacks, preventing damage from incorrect operation.
- Convenient Storage - The included storage case protects the multimeter from damage while maintaining portability. Whether you're at work or at home, it ensures the multimeter has the durability and mobility to go wherever the job takes it.
Product Description
Specifications
| Working Environment | CAT.IV 600 V; CAT.III 1000 V |
| Pollution Level | 2 |
| Work Temperature & Humidity | 0~40 °C(<80% RH, <10 °C Non-Con-densing) |
| Storage Temperature & Humidity | -10~60 °C(<70% RH, Battery removed) |
| Sampling Speed | 3 Times/Second |
| Digital Display | 4,½, 20000 |
| Range Selection | Auto |
| Power | 2x1.5 V AA batteries |
| DC Voltage | 200mV/2V/20V/200V/1000V ±(0.08%+5) |
| AC Voltage | 200mV/2V/20V/200V/750V ±(1.0%+25) |
| DC Current | 200μA/2000μA/20mA/200mA ±(0.5% +5), 10A ±(1.0% +15) |
| AC Current | 200μA/2000μA/20mA/200mA ±(1.0% +25), 10A ±(1.5% +25) |
| Resistance | 200Ω/2KΩ/20KΩ/200KΩ/2MΩ ±(1.0%+15)；20MΩ/100MΩ ±(3.0%+25) |
| Capacitance | 2nF/20nF/200nF/2μF/20μF/200μF/2mF/20mF ±(4.0%+50) |
| Temperature | -40°F-32°F（±6°F）；32°F-752°F（±1.0% or± 4 ° F)；752°F-1832°F（±2.0% ) |
| PACKAGE INCLUDES | User Manual X 1 ；Pair of Test Leads ；K-Type thermocouple X 1；Storage Bag X 1；AstroAI Digital Multimeter X 1 |
